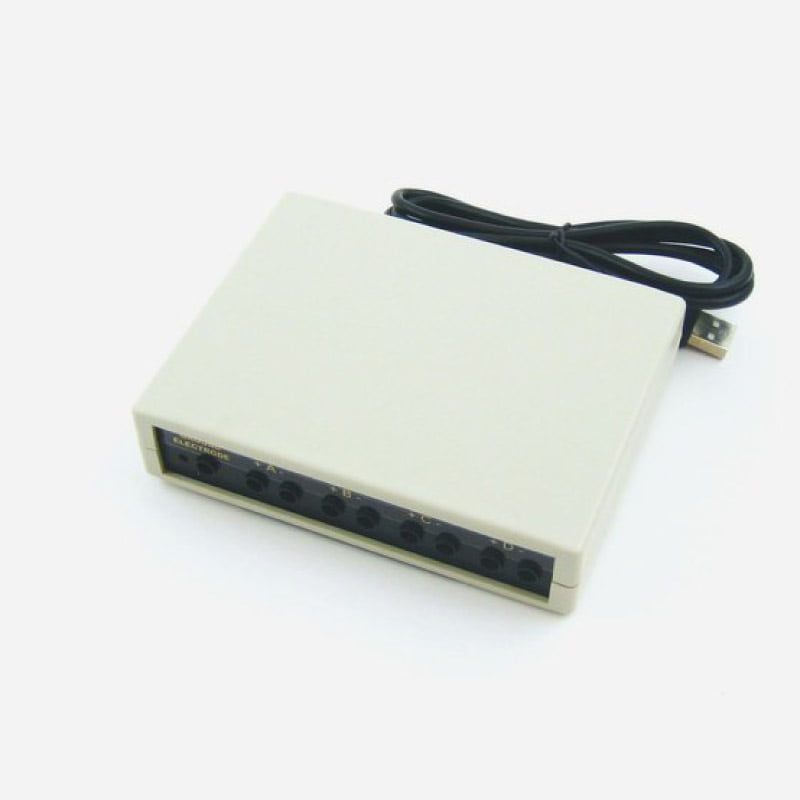

GP-12e PHYSIOAMP

MONITORS 12 CHANNELS – Four input channels are microvolt level with selectable gain and bandwidth for EMG, EEG and ECG. Four channels are temperature, respiration, or other high level sensors. Four channels are for GSR SR/SC. One channel is for PPG optical sensors to measure HR and BVP.

SOFTWARE – General purpose signal monitoring and recording applications are included. The 2023 updated software is supported on Windows 10 and 11. Third party software is available from several suppliers. We provide drivers and support for software developers. GP-12 is compatible with software developed for older I-330-C2+ devices.

NO BATTERIES – Power is supplied from USB by an isolation module. This reduces down-time and service problems. This radio frequency isolated power and data is superior to optical.

RELIABLE CABLES- Medical standard 1.5mm pin to snap leads are used for electrode connections and are available from many suppliers.

NEW TECHNOLOGY – It gives you cleaner signals, more reliability, and lower cost in a compact, rugged enclosure. New advanced chips provide 16 bit signal resolution.

COMPACT DESIGN – A general purpose physiological signal monitor in a case the size of 2 packs of playing cards. Add a small computer and you have a system in your pocket.

CONNECTION TEST – A built-in test monitors electrode connections and shows ohm values.

ADAPTABLE – A digital input connects optional accelerometer or compass modules for virtual reality applications. This input is also used for event markers from other equipment.

GET A QUOTE
Compare
Add to wishlist
Category:

Accesories

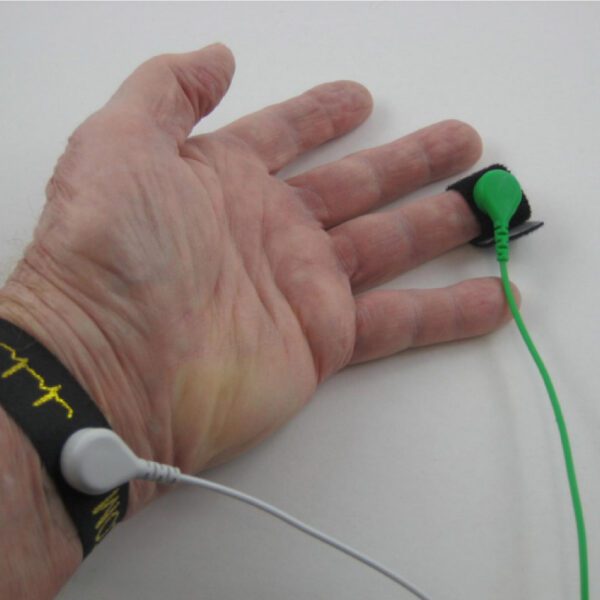

WB-5: Wristbands for ECG & Wrist-to-Wrist Heart Rate

02_WB-5

A pair of reusable cloth wristbands with a hole sized for SE-23 17mm electrodes and snap leads which holds the electrode securely against the skin.

Includes 2 wristbands, electrodes sold separately.

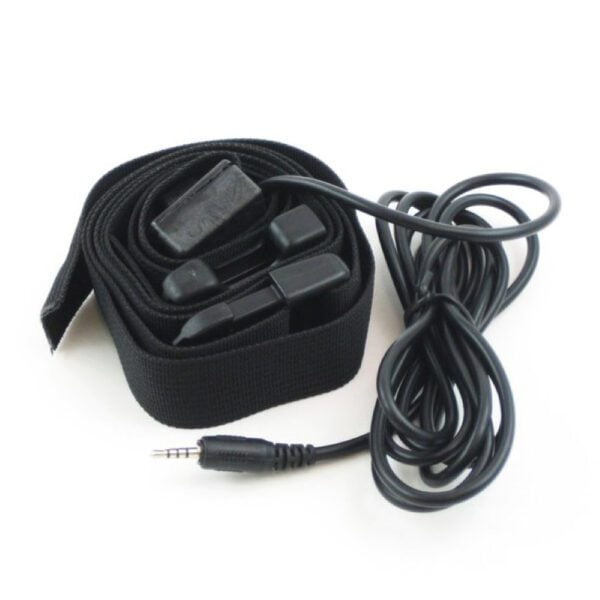

GP-5p: Respiration Sensor Belt (GP-12e Only)

03_GP-5p

Comfortable web belt coverts stretch to a respiration wave form. The connector on this belt only fits the GP-12.

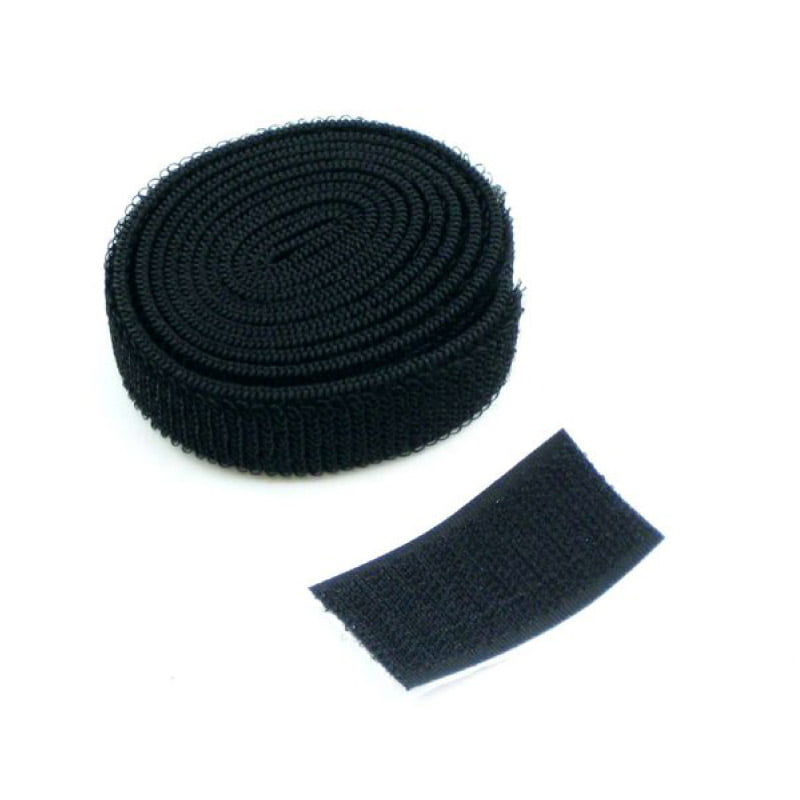

NS-40: 40" Soft Elastic Neck Strap

Soft elastic Velcro neck strap, 40 inches. Supplied with adhesive hook Velcro to put on the back of a GP-4 or GP-8.

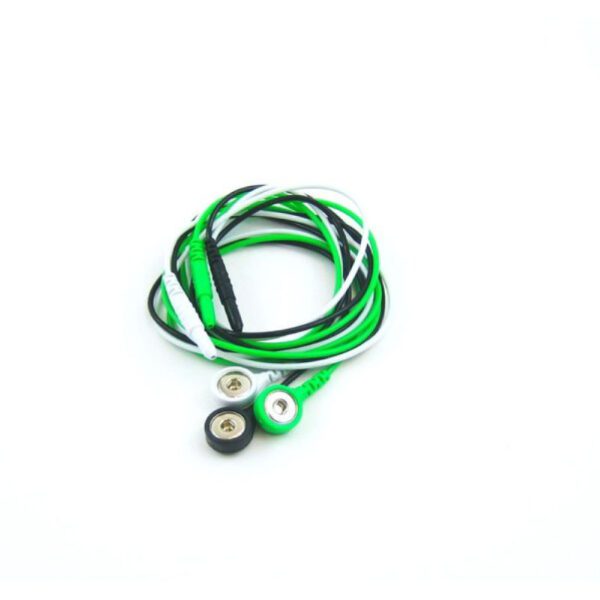

TP-40: Lead Set, 40", 1.5mm Socket & Snap

05_TP-40
Includes 3 standard touch proof instrument connector and electrode snaps. White, black, and green.

SE-22a: Ear Clips & Electrodes

04_SE-22A

Nylon clips with stainless steel springs and two silver chloride electrodes. Includes 2 clips and 2 electrodes.

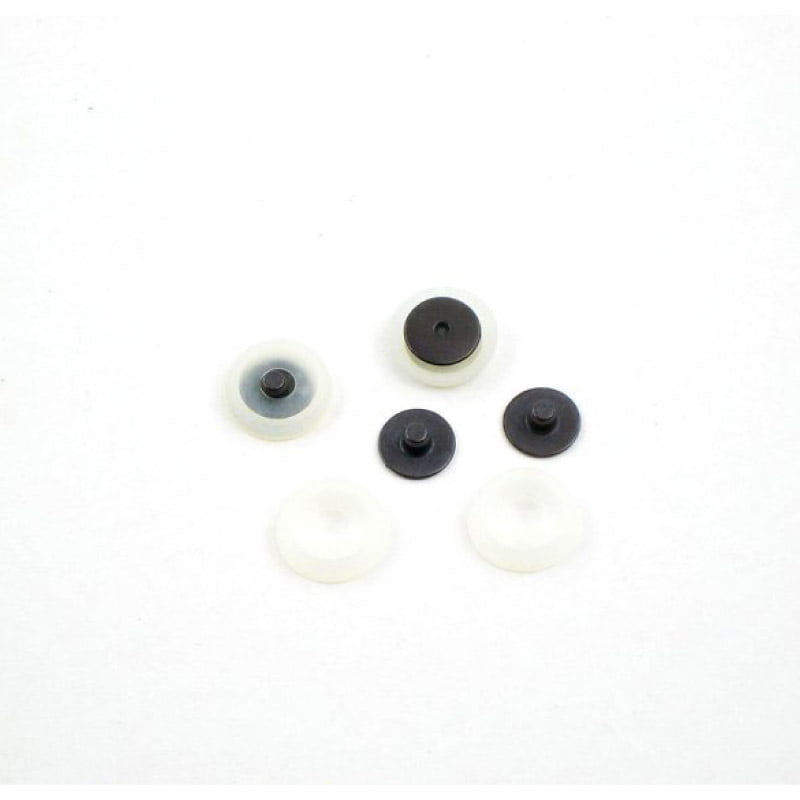

SE-20a: Electrodes & Paste Cups

Nylon paste cups with silver chloride electrodes. Includes 100 electrodes and 100 paste cups

SE-23: 17mm Silver Chloride Electrodes for ECG, EMG, & EEG Snap Leads

08_SE-23

Includes 3 reusable, 17mm silver chloride gel-free electrodes used with snap leads (SE-35), wrist bands (WB-4/5), or ear clips (SE-22a).

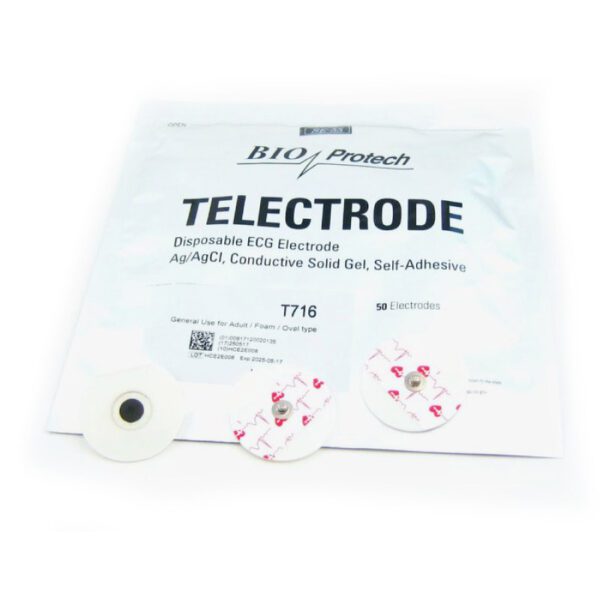

SE-55: Pre-Gelled Electrodes, 50

09_SE-55

Includes 50 pre-gelled electrodes with 1.5mm snaps. Disposable.

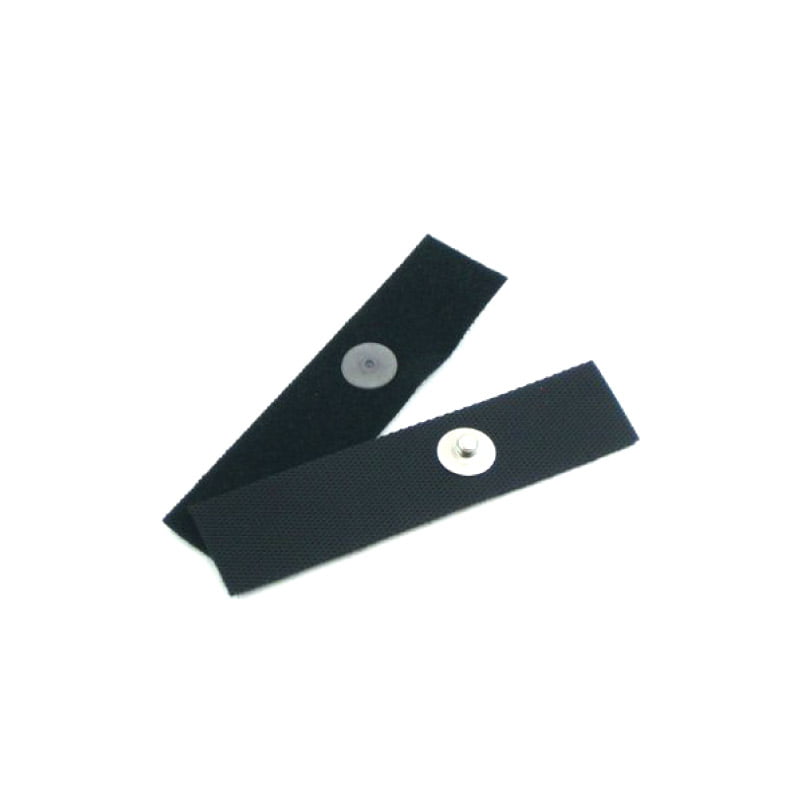

SE-35: Finger Electrodes for GSR/SC & Ground Reference

Includes 2, 10mm silver chloride electrodes used with snap leads wit soft hook and loop closure.

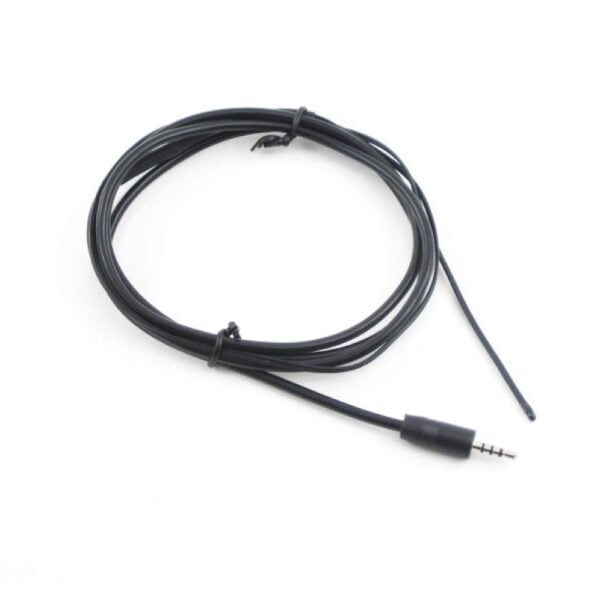

GP-7p: Temperature Sensor Cable (GP-12e Only)

11_GP-7p

A small fast response sensor for finger temperature, for GP-12e only.

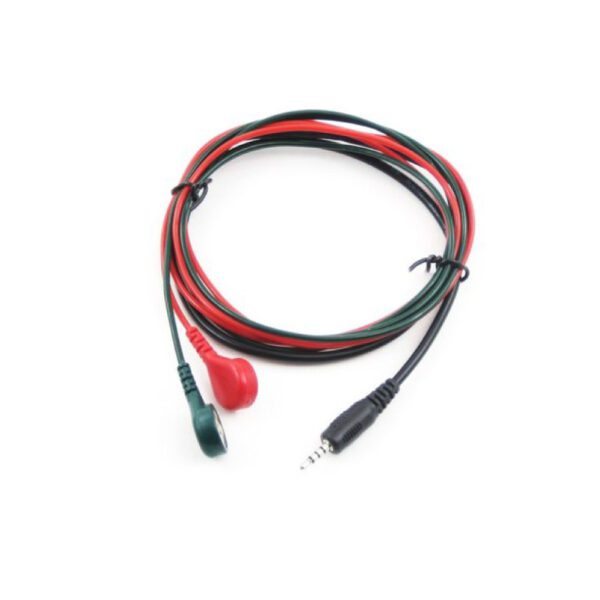

GP-8p: SC/GSR Snap Lead (GP-12 only)

12_GP-8p

Skin conductance/resistance snap lead compatible with SE-35 loops. For use with the GP-12e only.
